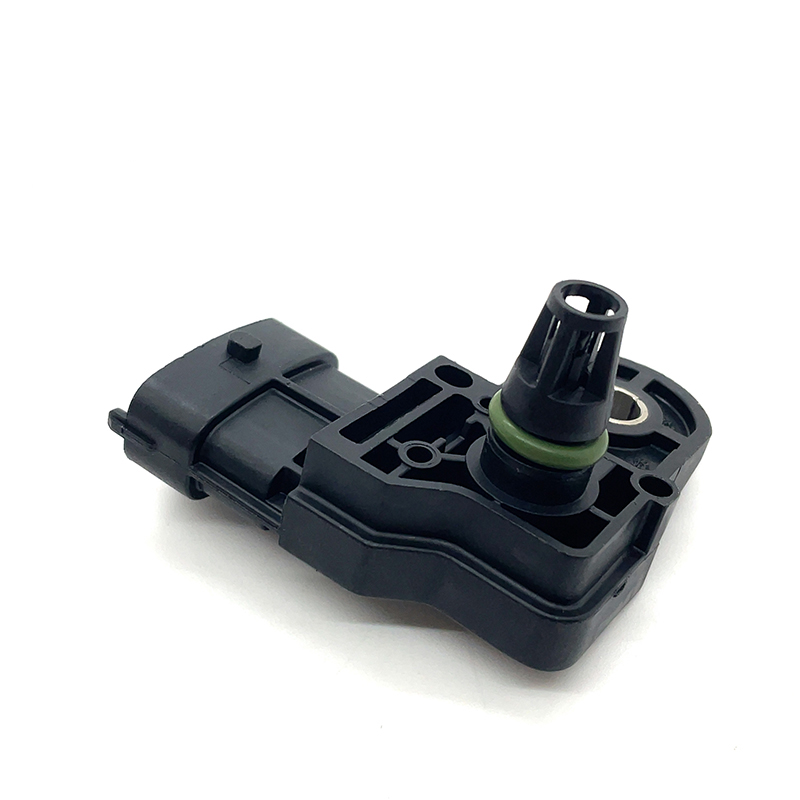

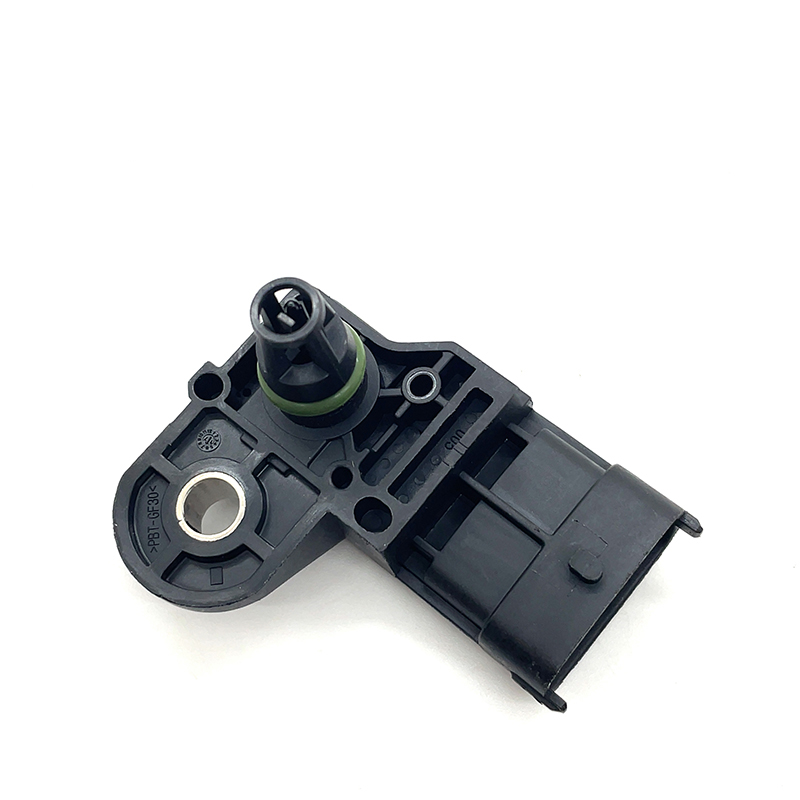

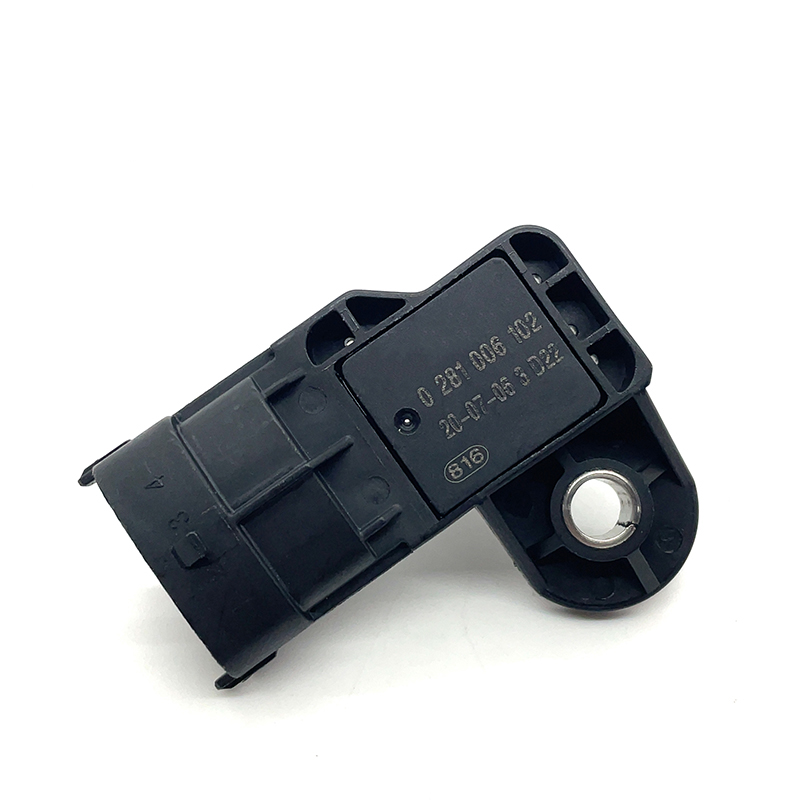

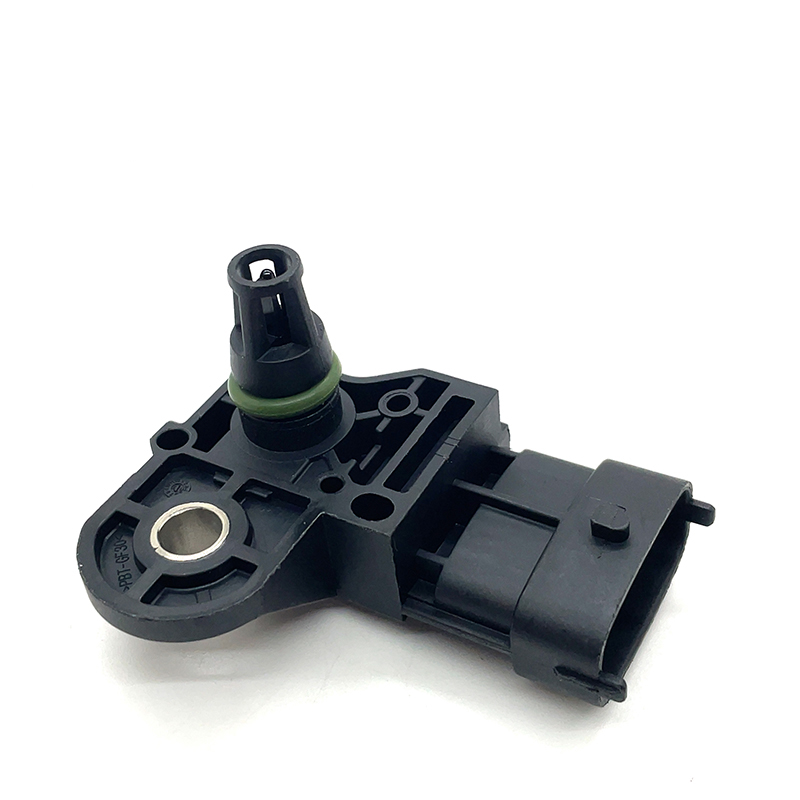

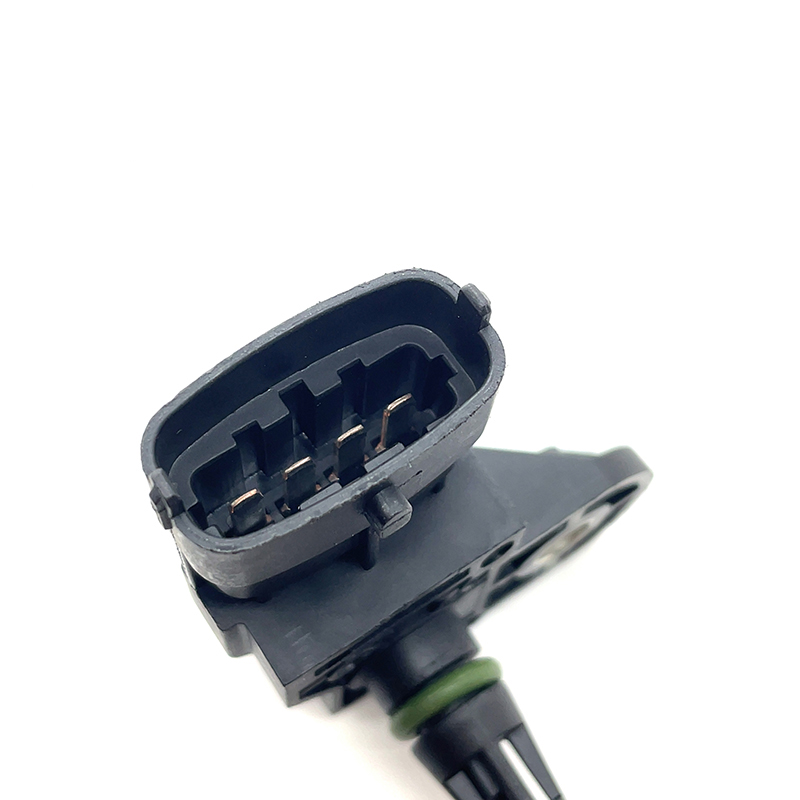

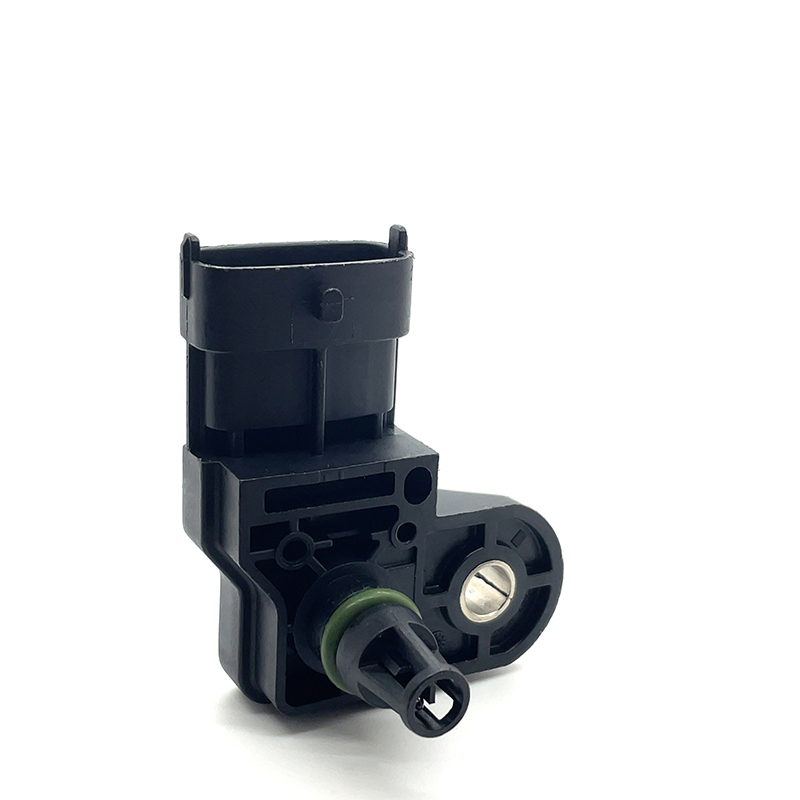

Factory Hot Sell Auto Electrical Systems Oem 0281006102 20524936
-
Measures boost pressure and intake air temperature simultaneously: The TMAP sensor converts real‑time manifold pressure and charge air temperature into electrical signals, allowing the ECU to calculate air density and adjust fuel injection and boost control for optimal combustion.
-
Supports high‑boost applications: With a 4.0 bar (400 kPa) pressure range, this sensor is designed for turbocharged and supercharged engines, reading from 50 kPa at 0.5V up to 400 kPa at 4.5V.
-
Restores engine performance and drivability: A failing sensor causes hesitation, surging, poor acceleration, or limp mode. Our sensor provides fast, linear pressure and temperature readings, restoring smooth power delivery across the RPM range.
-
Improves fuel efficiency and reduces emissions: Precise pressure and temperature data enables the ECU to deliver the correct air‑fuel ratio under all driving conditions, reducing fuel waste and lowering CO, HC, and NOx emissions.
Parameter Table
| Parameter | Details |
|---|---|
| Part Number | 0281006102, 20524936 |
| Brand | YZHIDIANF (OEM Bosch Specification) |
| Type | TMAP Sensor (Boost Pressure + Intake Air Temperature) |
| Pressure Range | 50 – 400 kPa (0.5 – 4.0 bar / 7.25 – 58 psi) |
| Output Signal (Pressure) | 0.5V @ 50 kPa – 4.5V @ 400 kPa |
| Output Signal (Temperature) | Integrated charge air temperature sensor |
| Operating Voltage | 5V DC (regulated from ECU) |
| Sensor Type | Piezoresistive with integrated temperature sensor |
| Replaces | 0281002576, 0281002743, 0281006114, 2S0906051, 21385453, 874241, 5010437653, 504073323, 504372225 |
| Applicable Models | BMW (N54/N55 3.0L), VW, Renault, Fiat, Alfa Romeo, Volvo, Volvo Penta, Mack, DAF, Iveco, Cummins, Kamaz, Weichai, Dongfeng |
| Warranty | 12 Months |
| Delivery Time | 3‑7 Days |
| Payment | T/T, Western Union, PayPal |
Why Choose Our Factory Hot Sell Auto Electrical Systems Oem 0281006102 20524936
Perfect Fit, Easy Installation
Made to Bosch OE specifications for a hassle‑free installation – direct plug‑and‑play replacement for your original TMAP sensor. Fits factory connectors with a secure seal.
Genuine OEM Specification
Manufactured to original equipment standards (OEM cross‑references: 0281002576, 0281002743, 2S0906051, 20524936, 21385453), ensuring identical performance to the dealer part.
4 Bar High‑Pressure Capability
Supports boost pressures up to 4.0 bar (400 kPa / 58 psi), making it ideal for turbocharged petrol and diesel engines, including high‑performance and commercial applications.
Integrated Temperature Sensing
Combines boost pressure and charge air temperature measurement in one unit – eliminates the need for a separate IAT sensor and provides the ECU with complete air density data.
Restores Power and Response
Replaces failing or inaccurate sensors that cause poor acceleration, black smoke, or limp mode. Restores factory boost control, throttle response, and drivability.
Wide Vehicle Compatibility
Fits a broad range of vehicles and equipment – from BMW N54/N55 3.0L petrol engines to Volvo, Renault, and Iveco trucks, plus Volvo Penta marine engines and construction equipment.
Application
Direct replacement for BMW N54 / N55 engines (E82, E90, E92, F10, etc.)
Fits BMW 135i, 335i, 535i, 640i, 1M Coupe with N54 or N55 3.0L turbo engines. Replaces original sensors 0281002576 / 0281002743. Fixes boost control issues, limp mode, and poor acceleration.
Compatible with Volvo, Renault, Iveco trucks & Volvo Penta marine
Fits Volvo trucks (FH, FM, VNL, VNM), Mack CXU/GU7/GU8, Renault Trucks, and Iveco commercial vehicles. Also compatible with Volvo Penta D3, D4, D6 marine engines. Replaces OE 20524936, 21385453, 874241.
Also fits VW, Fiat, Alfa Romeo, Renault passenger cars
Works on VW, Fiat, Alfa Romeo Giulia, Renault passenger vehicles with turbocharged petrol/diesel engines. Also compatible with Cummins, Kamaz, Weichai, and Dongfeng commercial engines.
