Introduction to Camshaft Position Sensor 90919-05055 0232103033 90080-19026
The YZHIDIANF camshaft position sensor (OE: 9091905055, 90919-05055, 0232103033, 90080-19026) fits FIAT, OPEL, VAUXHALL, PORSCHE, and VOLVO vehicles. It accurately reads camshaft angle and speed to optimize fuel injection and ignition for quick starts, smooth idle, and responsive throttle. Built with a high-temperature housing and sealed connector, it withstands harsh engine bay conditions and installs easily as a direct-fit replacement with no modifications. Backed by a 12-month warranty and shipped within 3-7 days.
Parameter Table of Camshaft Position Sensor 90919-05055 0232103033 90080-19026
| Parameter | Details |
|---|---|
| Part Number | 9091905055 / 90919-05055 / 0232103033 / 90080-19026 |
| Brand | YZHIDIANF |
| Type | Camshaft Position Sensor |
| Vehicle Applications | FIAT / OPEL / VAUXHALL / PORSCHE / VOLVO |
| Engine Compatibility | Compatible with various 4-cylinder and V6 petrol and diesel engines across listed brands |
| Sensor Type | Hall-effect magnetic pickup |

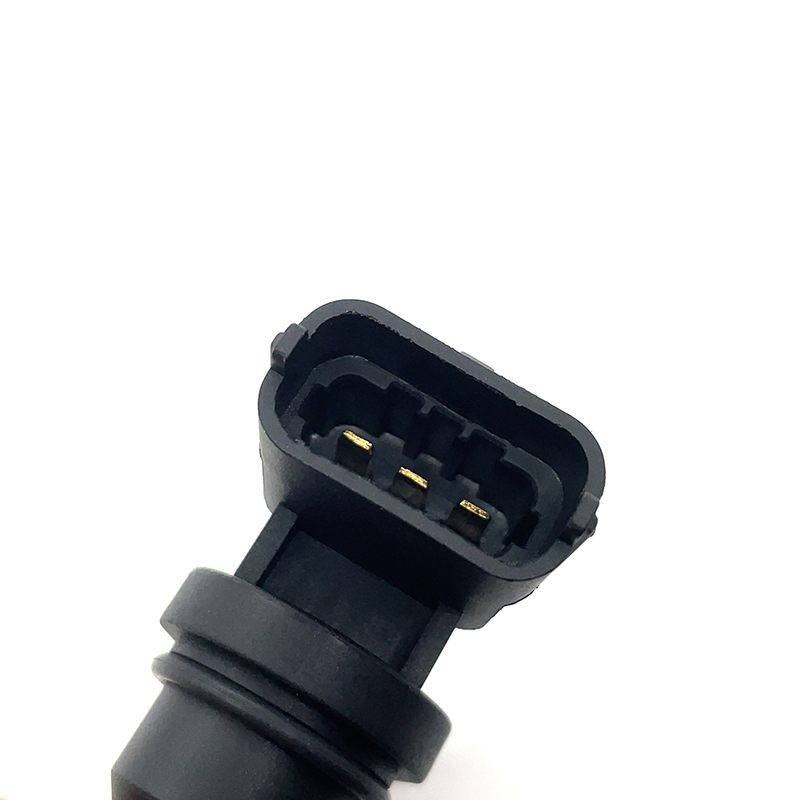

| Connector Type | OEM-standard sealed connector with locking tab |
| Housing Material | Glass-fiber reinforced PBT with high-temperature rating |
| Operating Temperature Range | -40°C to 150°C (-40°F to 302°F) |
| Output Signal | Digital square wave, 0–5V |
| Warranty | 12 Months |
| Delivery Time | 3–7 Days |
| Payment Terms | T/T, Western Union, PayPal |
Why Choose Our Camshaft Position Sensor 90919-05055 0232103033 90080-19026
Precision Sensing with Hall-Effect Technology
Hall-effect magnetic pickup reads camshaft position with minimal signal drift across the full temperature range. The digital square wave output integrates cleanly with modern ECU architectures found in FIAT, OPEL, VAUXHALL, PORSCHE, and VOLVO vehicles. Timing accuracy stays within 0.5 degrees across the sensor's service life.
Materials That Handle the Worst Conditions
The housing uses glass-fiber reinforced PBT, the same polymer grade specified by OE manufacturers for under-hood sensors. Electrical contacts are tin-plated brass, chosen for corrosion resistance in high-humidity environments. The O-ring seal is fluorocarbon rubber (FKM), rated for continuous contact with engine oil and diesel fuel.
Quality Control From Raw Material to Final Test
Each sensor goes through three inspection stages: incoming material verification, in-process electrical testing during assembly, and end-of-line functional validation. The final test simulates real engine conditions, spinning a target wheel at variable speeds while monitoring output frequency and voltage. Units that fall outside the tolerance band are rejected before packaging.
Direct OE Replacement Across Five European Brands
This one part number replaces original sensors on FIAT, OPEL, VAUXHALL, PORSCHE, and VOLVO applications. The cross-reference table at the bottom of this page lists specific vehicle models and production years. Ordering one SKU covers inventory for multiple brands, which reduces shelf complexity for distributors and workshops.
Tested for Vibration, Thermal Shock, and Moisture
Validation testing follows ISO 16750 for road vehicle environmental conditions. The sensor passes vibration testing at 10–2,000 Hz with 30g peak acceleration, thermal shock cycling from -40°C to 150°C, and 96-hour salt spray exposure per ISO 9227. These tests confirm the sensor holds up in real-world driving, not just on a bench.
12-Month Warranty With Fast Fulfillment
Every YZHIDIANF camshaft position sensor ships with a 12-month warranty against manufacturing defects. Orders process within 24 hours and deliver in 3 to 7 business days via air freight. Bulk pricing is available for orders of 50 units or more. Contact our sales team for a detailed quotation.
Help Center
FAQ
Q1：How is this Camshaft Position Sensor 9091905055 different from the crankshaft position sensor?
A1: The camshaft position sensor monitors camshaft rotation to identify which cylinder is on its compression stroke. The crankshaft position sensor tracks crankshaft speed and position. The ECU compares both signals to time fuel injection and ignition precisely. A failed camshaft sensor can cause similar symptoms to a failed crank sensor, but the fault codes and diagnostic steps differ. If your scan tool shows P0340-series codes, the camshaft sensor is the starting point. P0335-series codes point toward the crank sensor.
Q2: Is professional installation required?
A2: No. The Camshaft Position Sensor 9091905055 bolts to the cylinder head or timing cover with one or two fasteners and connects with a single electrical plug. Most DIY owners complete the job in 20 to 30 minutes. The main consideration is access: on some transverse-engine layouts, removing the engine cover or air intake duct gives you the clearance you need. Basic hand tools are sufficient. No special calibration or programming is required after installation.
Q3: Does this Camshaft Position Sensor 9091905055 come with a warranty?
A3: Yes. YZHIDIANF backs this sensor with a 12-month warranty covering manufacturing defects. If the sensor fails under normal use within the warranty period, we replace it at no cost. Contact our support team with your order number and a description of the issue.
